Baghouse Accessories
Menardi offers several accessories to help extend the life of your filters and to maintain the baghouse. Let us be your one stop provider. Click on the link below for more information.
► Cages
► Leak Detection
► Pre-coat
► Other Accessories

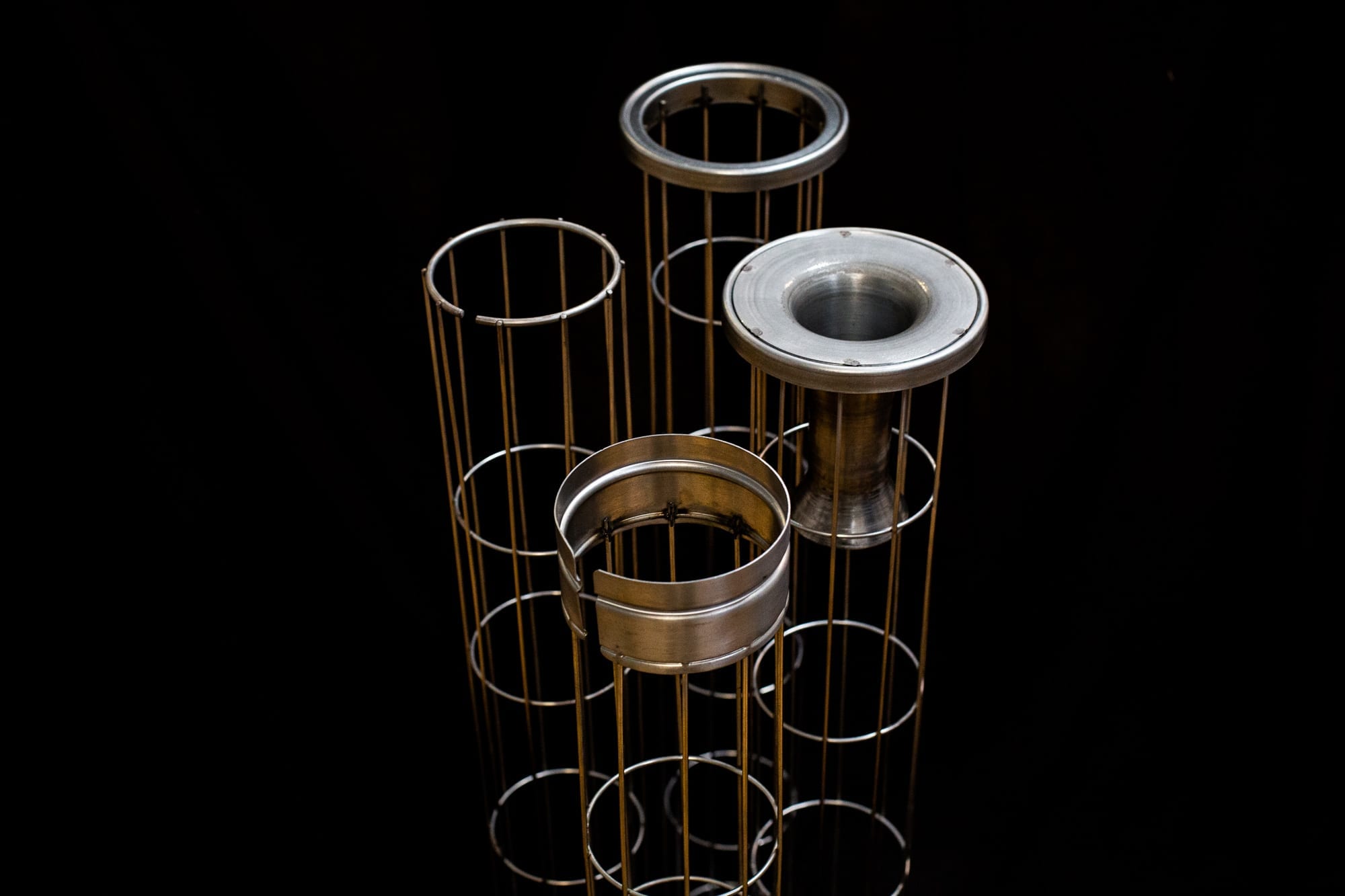

Cages:
Our dust collector cages can be made to fit existing collectors for most baghouse manufactures in a variety of material and designs.


Cage Wire Materials/Finishes
Carbon Steel/Mild Steel
Galvanized Steel
304 Stainless Steel
316 Stainless Steel
Epoxy Coated (High Temp <325°)
Other specialty metals upon request


Vertical Wires and Wire Gauges
6, 8, 10, 12, and 20 vertical wires
Common wire gauges 10, 11, and 12
High vacuum applications 7 and 9 gauge


Top Designs:
Roll Flange for standard top load designs with or without a built-in Venturi
Split Roll Band for standard bottom load designs
***Custom top designs upon request


Bottom Design:
Welded Pan Bottom


Specialty:
***Menardi can also supply multiple piece cages in twist lock, finger joint and coupling configurations

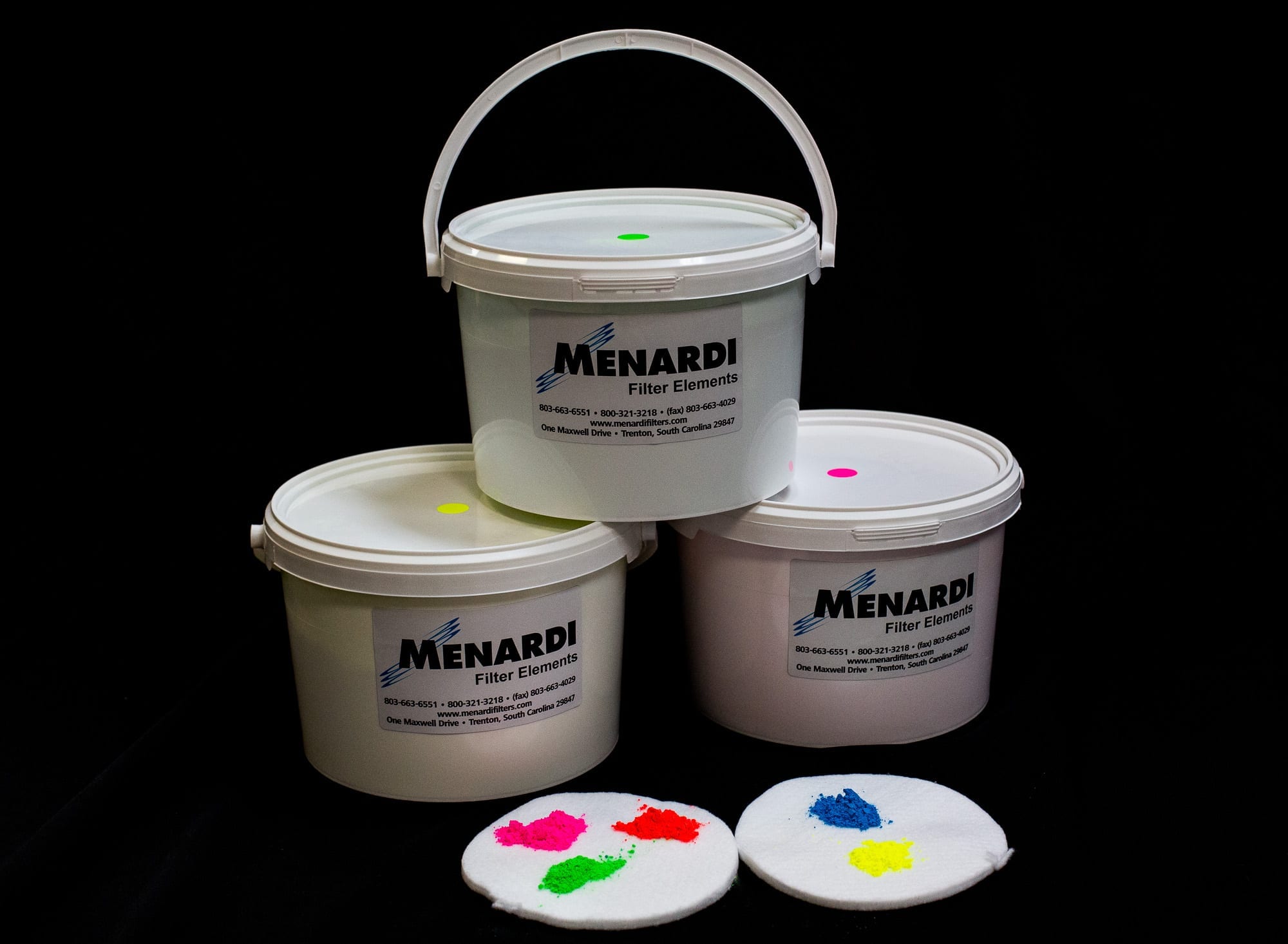

Leak Detection Powder and Pre-coat Agent:
We put the power of detection in your hands. Our non-hazardous fluorescent leak tracer reveals process air leaks, quickly, reliably and safely. We have a variety of colors available to choose from that will work for your specific application.

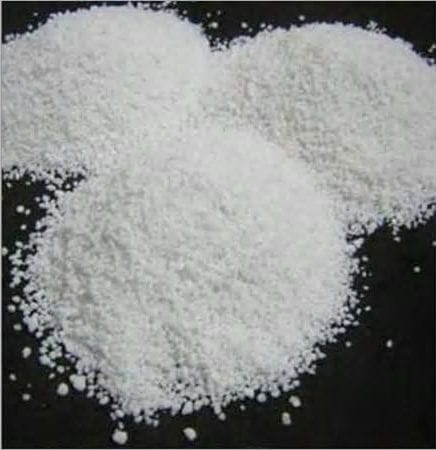

Pre-coat Agent:
Also, remember to protect your filter bags with our one-step conditioning agent. By sealing out moisture, oil and contaminates, you can eliminate problems associated with poor filtration – such as high emissions, skyrocketing operation costs, frequent shutdowns and production losses.

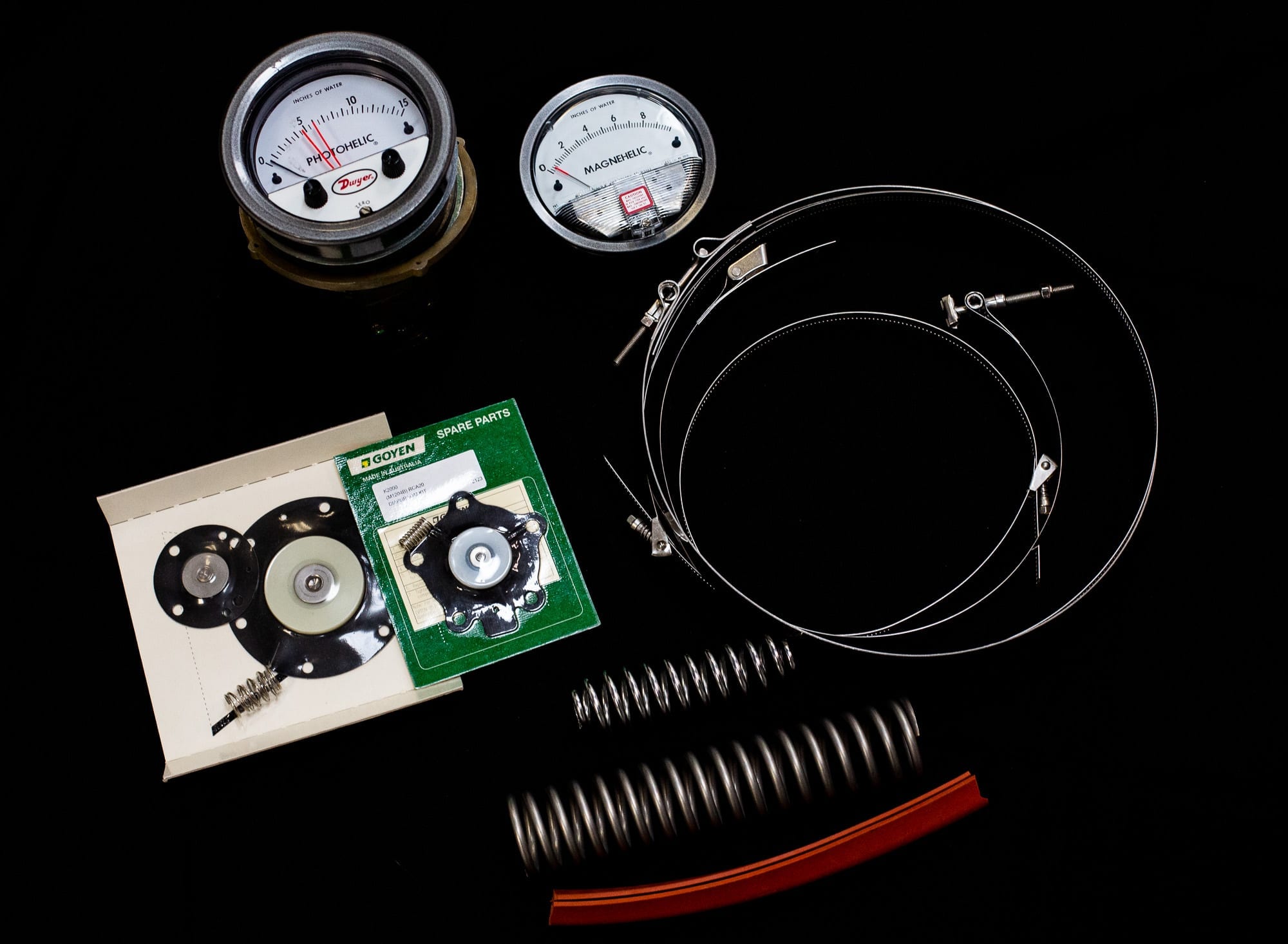

Other Accessories:
Valves and Repair Kits, Photohelic gauges, clamps, door gasket, hanging hardware and tensioning assemblies are just a few of the items we can help with. Call your sales representative today for more information on how we can help keep your baghouse running more efficiently.
